Detail Explorer

A two-panel section that pairs an accordion with a synced image gallery. When a visitor opens an accordion row, the gallery switches to that row’s image. Use it to walk through product features, processes, or any content where each step has a visual.

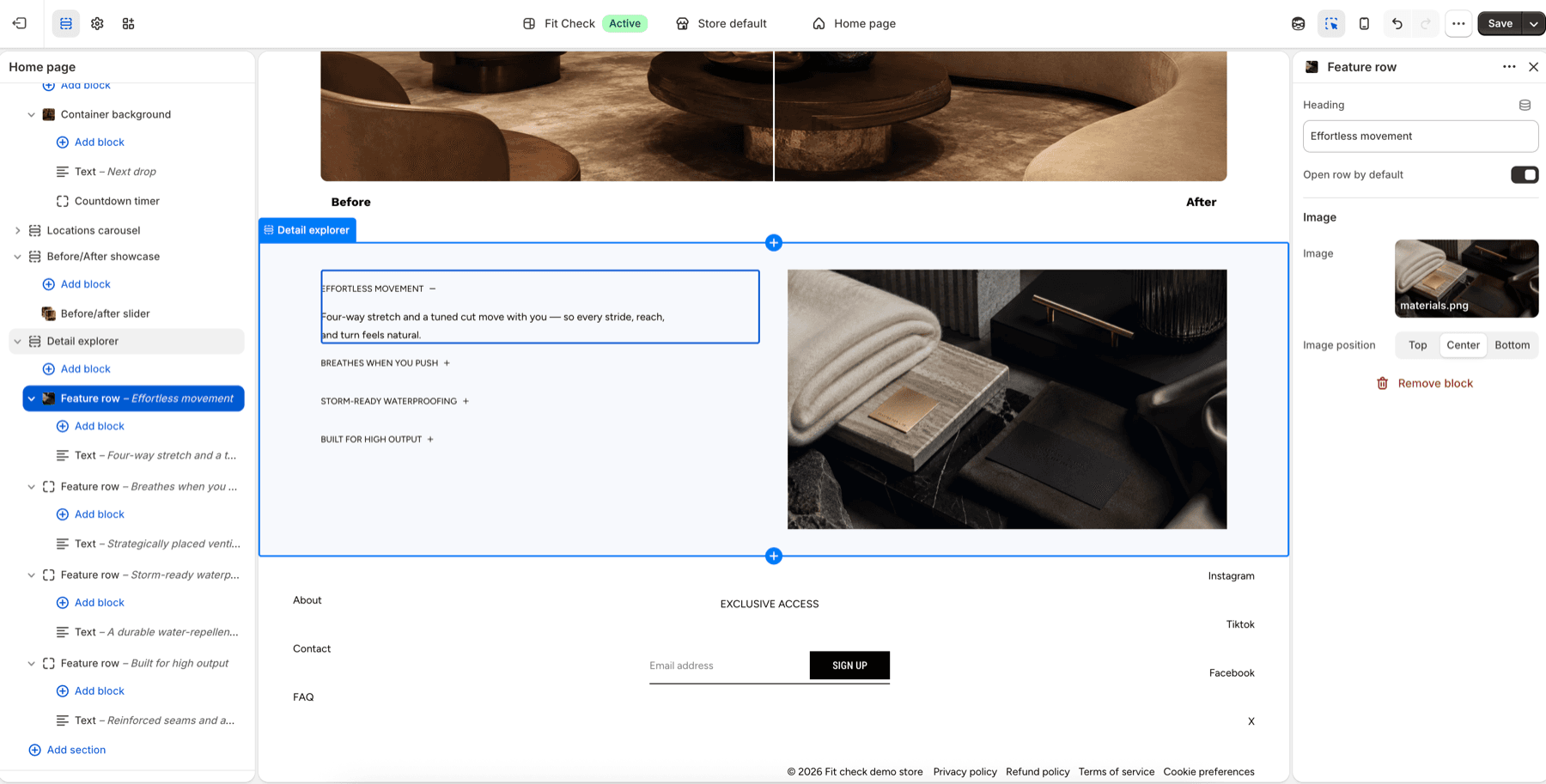

Configure the Section

In the theme editor, click Add section.
Select Detail explorer from the Interactive category.
Add Feature row blocks — each row has a heading, an image, and space for child blocks (text, buttons, etc.).

Section Settings

Accordion

Setting	Description
Icon style	Accordion toggle icon — Caret or Plus/minus. Default: Plus.
Auto-close other rows	When one row opens, close all others. Default: On.
Show dividers	Display divider lines between rows. Default: Off.
Place icon at end	Move the toggle icon to the right side. Default: Off.
Heading preset	Typography preset for row headings — Default or H1 through H6. Default: H4.


Setting	Description
Image sizing	How images fill the gallery — Fit (contained) or Fill (cover). Default: Fit.
Image position	Gallery placement — Left or Right. Default: Right.
Border radius	Rounded corners on gallery images. Range: 0–32px. Default: 0.
Content alignment	Vertical alignment of the accordion panel — Top, Center, or Bottom. Default: Center.
Image panel ratio	Relative width of the image panel. Range: 1–3. Default: 1.
Content panel ratio	Relative width of the content panel. Range: 1–3. Default: 1.
Gap	Spacing between accordion and gallery. Range: 0–100px. Default: 32px.
Color scheme	Select a color scheme for the section.

Layout

Setting	Description
Width	Page width, Full width, or Custom (60–100%). Default: Page width.
Height	Auto, Full screen, or Custom (small/medium/large/custom input). Default: Auto.
Padding	Top and bottom padding. Range: 0–100px. Default: 32px.

Row Block Settings

Each Feature row block supports the following:

Setting	Description
Heading	Text displayed in the accordion summary.
Open by default	Whether this row starts expanded. Default: Off.
Image	The image shown in the gallery when this row is open.
Image position	Crop focus for the image — Top, Center, or Bottom. Default: Center.

Child Blocks

Each row accepts child blocks for its expanded content:

Text — Rich text with full styling options.
Button — Call-to-action link.
Image with product links — Image with shoppable product badges.
Video with product links — Video with shoppable product badges.
Custom Liquid — Inline Liquid code.
App blocks — Third-party app content.

Responsive Behavior

On screens narrower than 750px, the section switches to a mobile carousel experience:

The desktop two-panel layout is replaced by a full-width swipeable carousel.
Each slide shows the row’s image with a counter badge (e.g., “1/4”) in the top-right corner.
Below the carousel, dot indicators show the current position (Instagram-style, no background pill).
The active row’s heading and text content appears beneath the dots, synced to the current slide.
Swiping between slides cross-fades the text content with a smooth transition.
